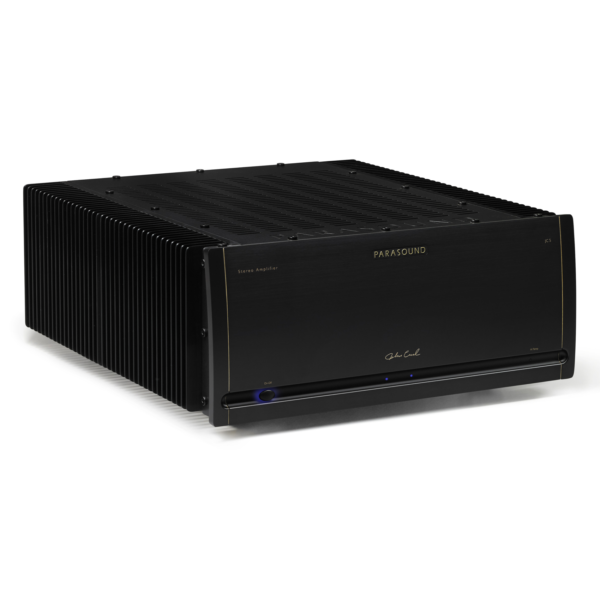

Parasound HALO JC 5 2-kanavainen päätevahvistin (2 x 400W), musta

Product number: JC 5B

Huippuluokan 2-kanavainen päätevahvistin. John Curlin suunnittelema; Teho: 2 x 400w 8 ohm, 2 x 600w 4 ohm, 1 x 1200w aillattuna; XLR (balansoitu)- ja RCA sisääntulot; toimintatila: stereo tai siltaus (mono); Loop out; koko: 4U (sis. räkkiraudat); väri: musta.

HALO JC5 (black) features:
– 400 watts x 2 @ 8 Ω RMS, both channels driven
– 600 watts x 2 @ 4 Ω RMS, both channels driven
– 1200 watts x 1@ 8 Ω, in bridged mode
– Circuitry designed by legendary John Curl
– Ultra-high bias Class A/AB operation
– 12 watts per channel of pure Class A power
– 90 amperes peak current per channel
– Stable with speaker impedance dips to 1.5 Ω
– Balanced inputs with discrete circuits
– CHK Infinium, custom 5-way speaker binding posts
– Neutrik locking XLR input connectors
– Vampire gold-plated RCA input & loop output jacks
– Direct-coupled signal path, no capacitors or inductors
– DC Servo and relay protection circuits
– AC turn-on inrush surge protection with relay bypass

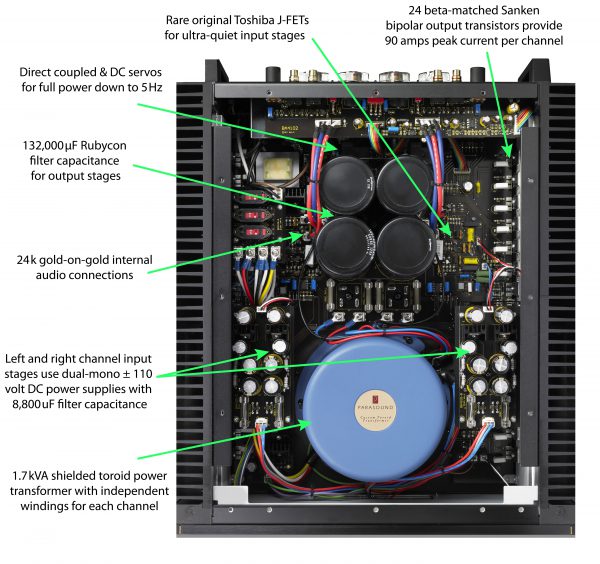

– Dual-mono input stages with ±110 volt DC rails
– JFET input stage, MOSFET driver stage
– 24 beta-matched 15 ampere, 60 MHz bipolar output transistors
– 1.7 kVA shielded toroid power transformer with independent windings for each channel
– Independent power supplies for left & right channel input stages, driver stages, output stages
– 8,880 µF Nichicon Gold Tune filter capacitors for input stages
– 132,000 µF Rubycon filter capacitors for output stages
– Full power is rated all the way down to 5Hz for unrestricted low-end bass
– Harris hyper-fast soft-recovery bridge diode rectifiers
– Automatic turn-on by 12 V trigger or audio sensing
– 4 rack space chassis with rear carry handles
– Rack mount hardware is included
