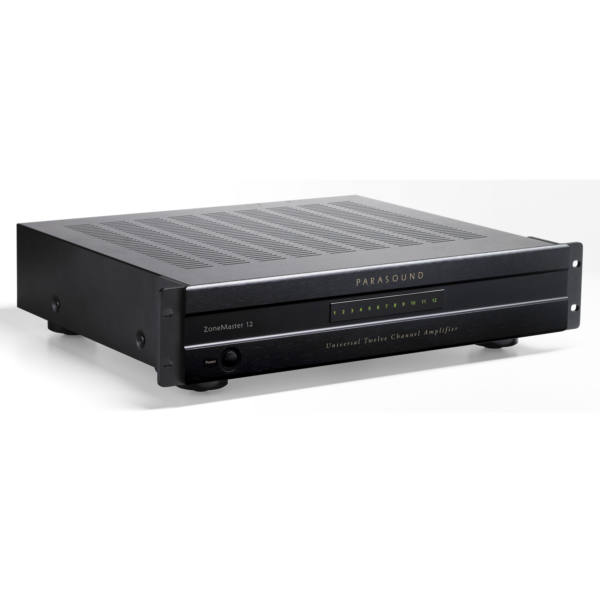

Parasound ZoneMaster 12, 12-kanavainen päätevahvistin, musta

Product number: ZM 12

12-kanavainen päätevahvistin. Teho: 120W per kanava (kanavat 1-2) ja 60W per kanava (kanavat 3-12) 8 ohmin kuormalla; A ja B kaiutinlähdöt (kytkennät 12:sta parille kaiuttimia); kuusi itsenäistä stereo aluetta; toimintatila: stereo, siltaus, tai mono (L+R summaus); 2 x loop out (BUS 1 ja BUS 2); kaiutinsignaalin tuloliitäntä.

ZoneMaster 12 features:
– Universal amplifier for applications from 60 to 150 watts
– Zone 1 (channel 1&2) are higher power for more demanding applications

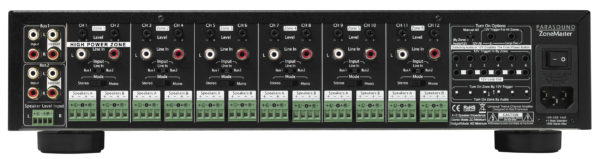

– 24 speaker connections (A and B outputs for all 12 channels)
– High current for stable operation at 2 Ohms
– Class AB input stage plus premium Class D power stage
– Independent audio sensing triggers, one for each zone
– 6 Independent 12 volt trigger inputs, one for each zone
– Looping 12 volt trigger outputs for each zone
– Master 12 volt trigger input to turn all zones on-off
– Speaker level input for expanding systems w/out pre out jacks
– Two bus inputs can be routed to any zone
– Bus loop output jacks for passing audio to another amp
– Summed Mono mode combines L and R for single speaker applications
– Separate level controls for all twelve channels
– Detachable speaker connectors accept up to 12 gauge wire
– Short circuit and overheat protection with front panel indicators




Product manual
